Name: TC6321T-V/9U
Brand: Microchip Technology
SKU: TC6321T-V/9U
Price: 1.49 USD
Availability: InStock

REF: TC6321T-V/9U Microchip Technology

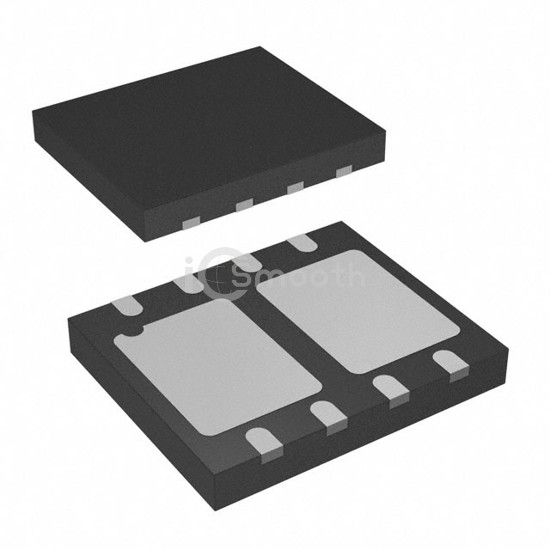

TC6321T-V/9U

Microchip Technology

MOSFET N/P-CH 200V 2A 8VDFN

TC6321T-V/9U is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET N/P-CH 200V 2A 8VDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C, package / case 8-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,257

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Rds On (Max) @ Id, Vgs	7Ohm @ 1A, 10V, 8Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA, 2.4V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	110pF @ 25V, 200pF @ 25V
Power - Max	-
Operating Temperature	-55°C ~ 175°C
Mounting Type	Surface Mount
Package / Case	8-VDFN Exposed Pad
Supplier Device Package	8-VDFN (6x5)
