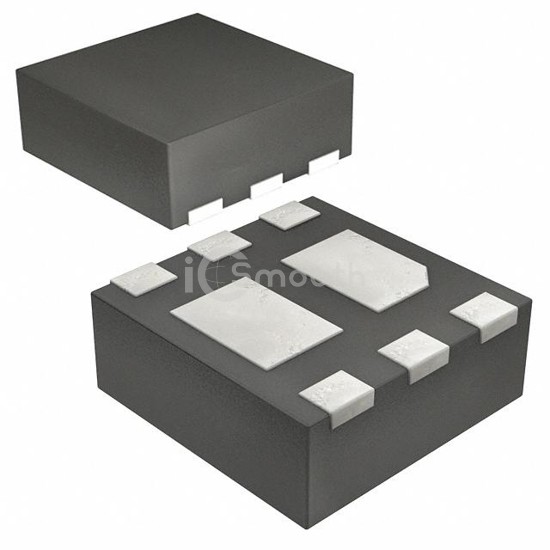

Name: SSM6N68NU,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM6N68NU,LF
Price: 0.48 USD
Availability: InStock

REF: SSM6N68NU,LF Toshiba Semiconductor and Storage

SSM6N68NU,LF

Toshiba Semiconductor and Storage

SMALL LOW RON DUAL NCH MOSFETS H

SSM6N68NU,LF is a Transistors - FETs, MOSFETs - Arrays manufactured by Toshiba Semiconductor and Storage. SMALL LOW RON DUAL NCH MOSFETS H. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 6-WDFN Exposed Pad, power - max 2W (Ta).

Datasheet Request a Quote

In Stock: 3,000

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate, 1.8V Drive
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Rds On (Max) @ Id, Vgs	84mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	1.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	129pF @ 15V
Power - Max	2W (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-µDFN (2x2)
