APTC60AM45BC1G

In Stock: 9,741

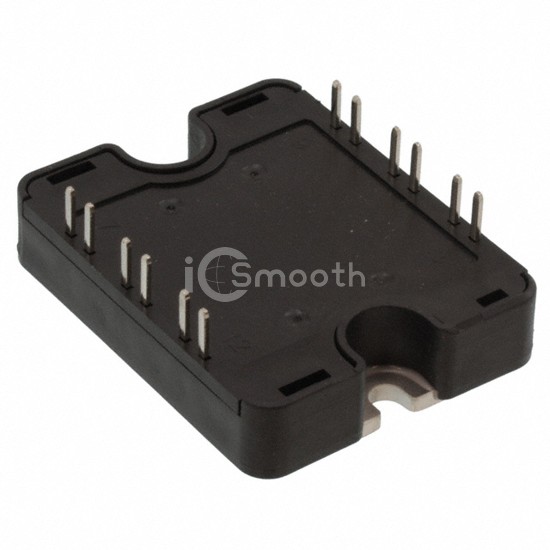

APTC60AM45BC1G - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTC60AM45BC1G Microchip Technology
APTC60AM45BC1G

Microchip Technology

MOSFET 3N-CH 600V 49A SP1

APTC60AM45BC1G is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 3N-CH 600V 49A SP1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP1, power - max 250W.

Datasheet Request a Quote

In Stock: 9,741

Specifications

14 parameters
Product StatusActive
FET Type3 N Channel (Phase Leg + Boost Chopper)
FET FeatureStandard
Drain to Source Voltage (Vdss)600V
Current - Continuous Drain (Id) @ 25°C49A
Rds On (Max) @ Id, Vgs45mOhm @ 24.5A, 10V
Vgs(th) (Max) @ Id3.9V @ 3mA
Gate Charge (Qg) (Max) @ Vgs150nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds7200pF @ 25V
Power - Max250W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP1
Supplier Device PackageSP1
