MSCSM70TAM10CTPAG

In Stock: 6,500

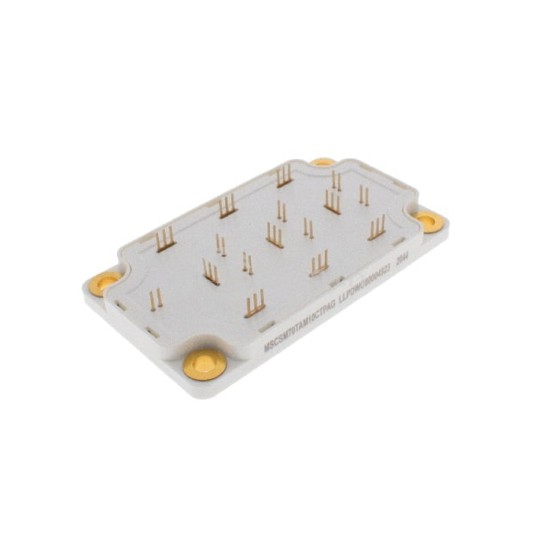

MSCSM70TAM10CTPAG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: MSCSM70TAM10CTPAG Microchip Technology
MSCSM70TAM10CTPAG

Microchip Technology

PM-MOSFET-SIC-SBD~-SP6P

MSCSM70TAM10CTPAG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. PM-MOSFET-SIC-SBD~-SP6P. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, power - max 674W (Tc).

Datasheet Request a Quote

In Stock: 6,500

Specifications

14 parameters
Product StatusActive
FET Type6 N-Channel (3-Phase Bridge)
FET FeatureSilicon Carbide (SiC)
Drain to Source Voltage (Vdss)700V
Current - Continuous Drain (Id) @ 25°C238A (Tc)
Rds On (Max) @ Id, Vgs9.5mOhm @ 80A, 20V
Vgs(th) (Max) @ Id2.4V @ 8mA
Gate Charge (Qg) (Max) @ Vgs430nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds9000pF @ 700V
Power - Max674W (Tc)
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageSP6-P
