MSCSM70HM19CT3AG

In Stock: 1

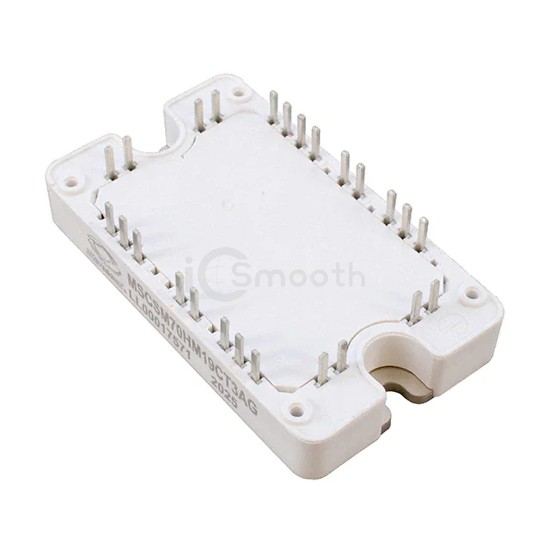

MSCSM70HM19CT3AG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: MSCSM70HM19CT3AG Microchip Technology
MSCSM70HM19CT3AG

Microchip Technology

PM-MOSFET-SIC-SBD~-SP3F

MSCSM70HM19CT3AG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. PM-MOSFET-SIC-SBD~-SP3F. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, power - max 365W (Tc).

Datasheet Request a Quote

In Stock: 1

Specifications

14 parameters
Product StatusActive
FET Type4 N-Channel
FET FeatureSilicon Carbide (SiC)
Drain to Source Voltage (Vdss)700V
Current - Continuous Drain (Id) @ 25°C124A (Tc)
Rds On (Max) @ Id, Vgs19mOhm @ 40A, 20V
Vgs(th) (Max) @ Id2.4V @ 4mA
Gate Charge (Qg) (Max) @ Vgs215nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds4500pF @ 700V
Power - Max365W (Tc)
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageSP3F
