MSCSM170DUM23T3AG

In Stock: 5

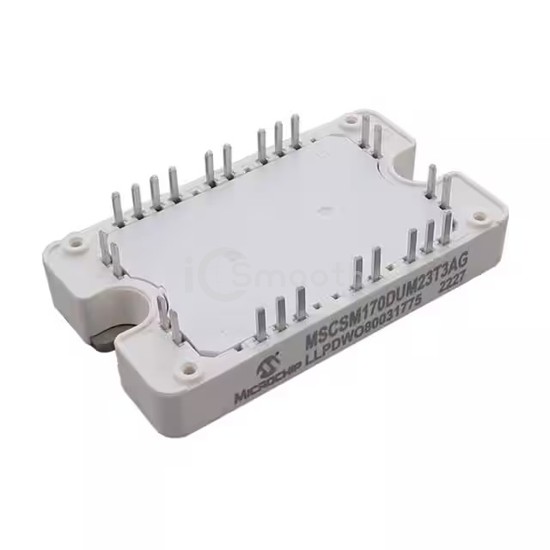

MSCSM170DUM23T3AG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: MSCSM170DUM23T3AG Microchip Technology
MSCSM170DUM23T3AG

Microchip Technology

PM-MOSFET-SIC-SP3F

MSCSM170DUM23T3AG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. PM-MOSFET-SIC-SP3F. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, power - max 602W (Tc).

Request a Quote

In Stock: 5

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Source
FET FeatureSilicon Carbide (SiC)
Drain to Source Voltage (Vdss)1700V (1.7kV)
Current - Continuous Drain (Id) @ 25°C124A (Tc)
Rds On (Max) @ Id, Vgs22.5mOhm @ 60A, 20V
Vgs(th) (Max) @ Id3.2V @ 5mA
Gate Charge (Qg) (Max) @ Vgs356nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds6600pF @ 1000V
Power - Max602W (Tc)
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageSP3F
