MSCSM120AM11CT3AG

In Stock: 3,046

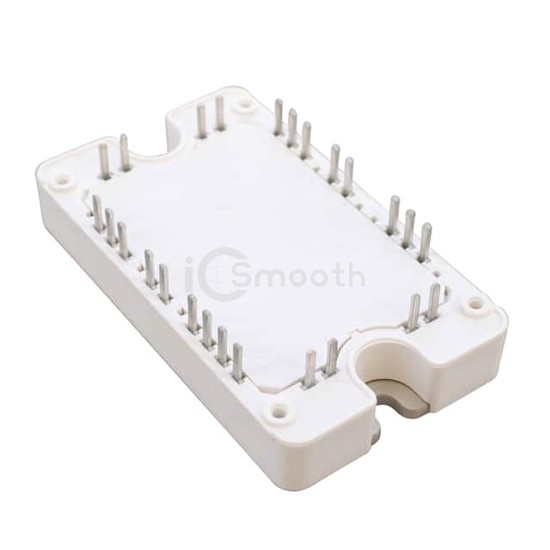

MSCSM120AM11CT3AG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: MSCSM120AM11CT3AG Microchip Technology
MSCSM120AM11CT3AG

Microchip Technology

PM-MOSFET-SIC-SBD~-SP3F

MSCSM120AM11CT3AG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. PM-MOSFET-SIC-SBD~-SP3F. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, power - max 1.067kW (Tc).

Datasheet Request a Quote

In Stock: 3,046

Specifications

14 parameters
Product StatusActive
FET Type2 N Channel (Phase Leg)
FET FeatureSilicon Carbide (SiC)
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C254A (Tc)
Rds On (Max) @ Id, Vgs10.4mOhm @ 120A, 20V
Vgs(th) (Max) @ Id2.8V @ 3mA
Gate Charge (Qg) (Max) @ Vgs696nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds9060pF @ 1000V
Power - Max1.067kW (Tc)
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageSP3F
