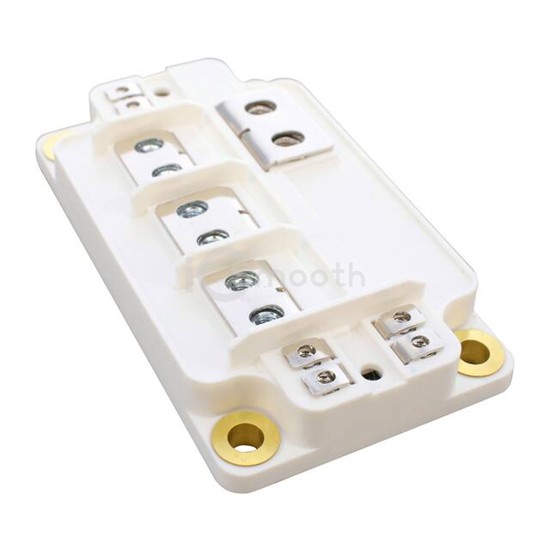

MSCSM120AM03CT6LIAG

In Stock: 5
MSCSM120AM03CT6LIAG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: MSCSM120AM03CT6LIAG Microchip Technology
MSCSM120AM03CT6LIAG

Microchip Technology

PM-MOSFET-SIC-SBD~-SP6C LI

MSCSM120AM03CT6LIAG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. PM-MOSFET-SIC-SBD~-SP6C LI. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, power - max 3.215kW (Tc).

Datasheet Request a Quote

In Stock: 5

Specifications

14 parameters
Product StatusActive
FET Type2 N Channel (Phase Leg)
FET FeatureSilicon Carbide (SiC)
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C805A (Tc)
Rds On (Max) @ Id, Vgs3.1mOhm @ 400A, 20V
Vgs(th) (Max) @ Id2.8V @ 10mA
Gate Charge (Qg) (Max) @ Vgs2320nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds30200pF @ 1kV
Power - Max3.215kW (Tc)
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageSP6C LI
