APTMC60TL11CT3AG

In Stock: 7,546

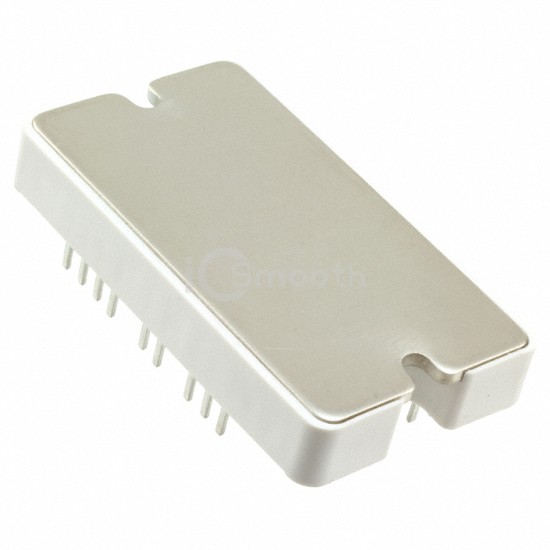

APTMC60TL11CT3AG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTMC60TL11CT3AG Microchip Technology
APTMC60TL11CT3AG

Microchip Technology

MOSFET 4N-CH 1200V 28A SP3

APTMC60TL11CT3AG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 4N-CH 1200V 28A SP3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP3, power - max 125W.

Datasheet Request a Quote

In Stock: 7,546

Specifications

14 parameters
Product StatusActive
FET Type4 N-Channel (Three Level Inverter)
FET FeatureSilicon Carbide (SiC)
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C28A (Tc)
Rds On (Max) @ Id, Vgs98mOhm @ 20A, 20V
Vgs(th) (Max) @ Id2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs49nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds950pF @ 1000V
Power - Max125W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP3
Supplier Device PackageSP3
