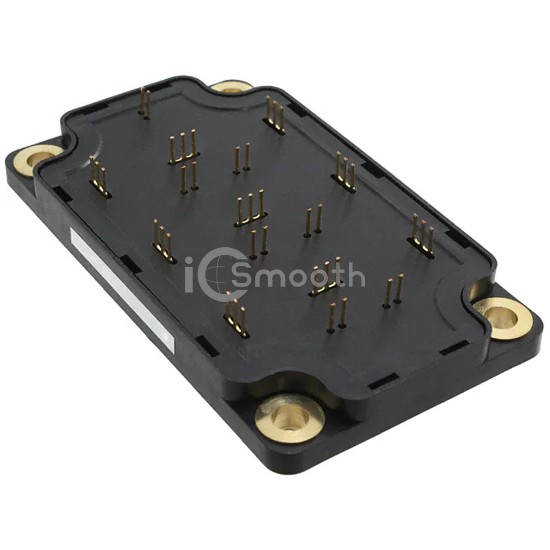

Name: APTMC120TAM33CTPAG
Brand: Microchip Technology
SKU: APTMC120TAM33CTPAG
Availability: InStock

REF: APTMC120TAM33CTPAG Microchip Technology

APTMC120TAM33CTPAG

MOSFET 6N-CH 1200V 78A SP6-P

APTMC120TAM33CTPAG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 6N-CH 1200V 78A SP6-P. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, power - max 370W.

Datasheet Request a Quote

In Stock: 4,516

Specifications

14 parameters

Product Status	Active
FET Type	6 N-Channel (3-Phase Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	78A (Tc)
Rds On (Max) @ Id, Vgs	33mOhm @ 60A, 20V
Vgs(th) (Max) @ Id	2.2V @ 3mA (Typ)

Gate Charge (Qg) (Max) @ Vgs	148nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	2850pF @ 1000V
Power - Max	370W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP6
Supplier Device Package	SP6-P
