Name: APTMC120AM55CT1AG
Brand: Microchip Technology
SKU: APTMC120AM55CT1AG
Availability: InStock

REF: APTMC120AM55CT1AG Microchip Technology

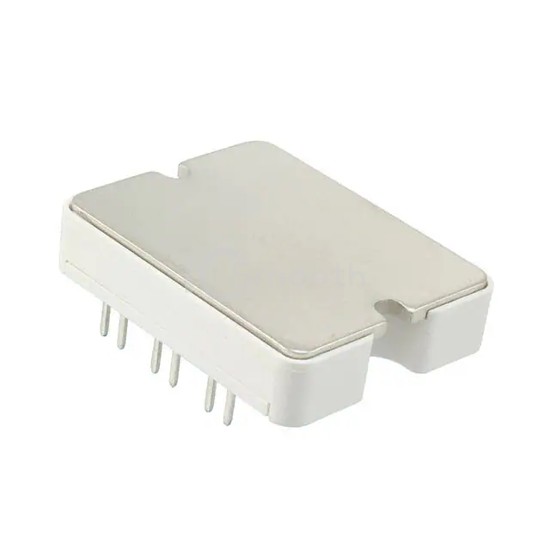

APTMC120AM55CT1AG

MOSFET 2N-CH 1200V 55A SP1

APTMC120AM55CT1AG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 2N-CH 1200V 55A SP1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP1, power - max 250W.

Datasheet Request a Quote

In Stock: 8,705

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	55A (Tc)
Rds On (Max) @ Id, Vgs	49mOhm @ 40A, 20V
Vgs(th) (Max) @ Id	2.2V @ 2mA (Typ)

Gate Charge (Qg) (Max) @ Vgs	98nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	1900pF @ 1000V
Power - Max	250W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP1
Supplier Device Package	SP1
