APTMC120AM25CT3AG

In Stock: 7

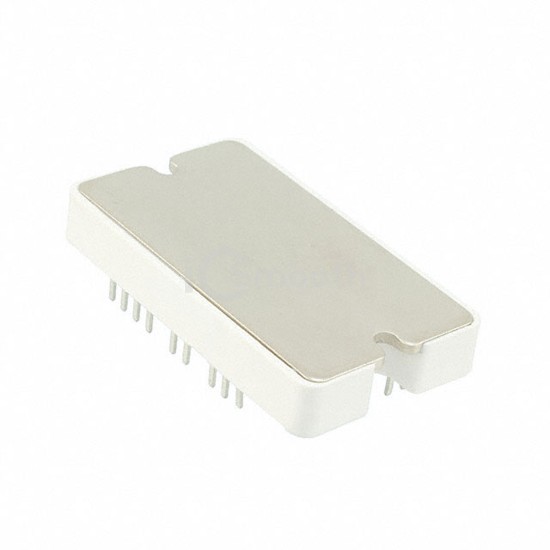

APTMC120AM25CT3AG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTMC120AM25CT3AG Microchip Technology
APTMC120AM25CT3AG

Microchip Technology

MOSFET 2N-CH 1200V 105A SP3F

APTMC120AM25CT3AG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 2N-CH 1200V 105A SP3F. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP3, power - max 500W.

Datasheet Request a Quote

In Stock: 7

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureSilicon Carbide (SiC)
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C113A (Tc)
Rds On (Max) @ Id, Vgs25mOhm @ 80A, 20V
Vgs(th) (Max) @ Id2.2V @ 4mA (Typ)
Gate Charge (Qg) (Max) @ Vgs197nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds3800pF @ 1000V
Power - Max500W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP3
Supplier Device PackageSP3
