APTMC120AM16CD3AG

In Stock: 4,048

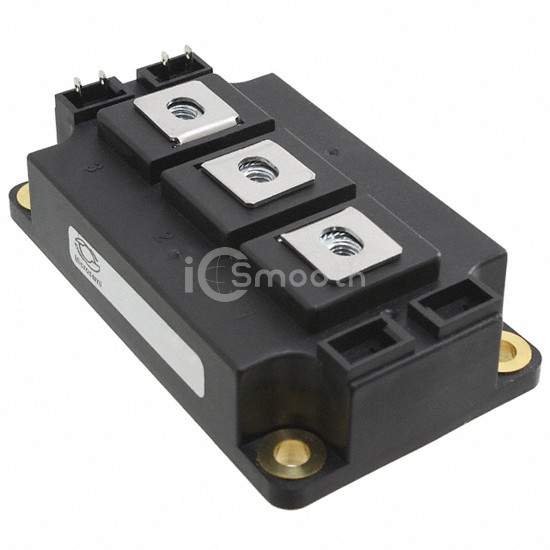

APTMC120AM16CD3AG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTMC120AM16CD3AG Microchip Technology
APTMC120AM16CD3AG

Microchip Technology

MOSFET 2N-CH 1200V 131A D3

APTMC120AM16CD3AG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 2N-CH 1200V 131A D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case D-3 Module, power - max 625W.

Datasheet Request a Quote

In Stock: 4,048

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureSilicon Carbide (SiC)
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C131A (Tc)
Rds On (Max) @ Id, Vgs20mOhm @ 100A, 20V
Vgs(th) (Max) @ Id2.2V @ 5mA (Typ)
Gate Charge (Qg) (Max) @ Vgs246nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds4750pF @ 1000V
Power - Max625W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseD-3 Module
Supplier Device PackageD3
