Name: APTMC120AM08CD3AG
Brand: Microchip Technology
SKU: APTMC120AM08CD3AG
Availability: InStock

REF: APTMC120AM08CD3AG Microchip Technology

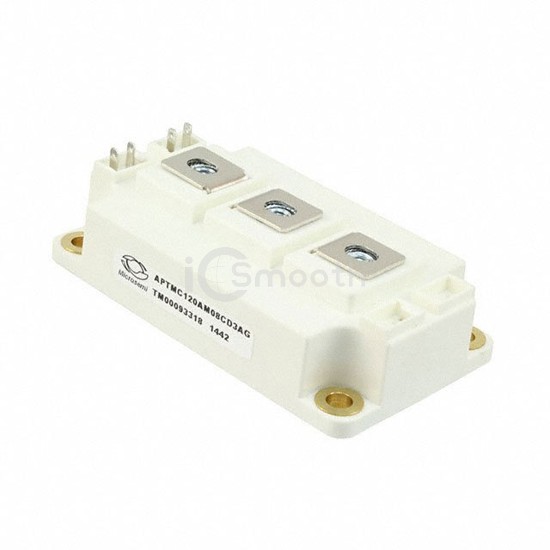

APTMC120AM08CD3AG

MOSFET 2N-CH 1200V 250A D3

APTMC120AM08CD3AG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 2N-CH 1200V 250A D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case D-3 Module, power - max 1100W.

Datasheet Request a Quote

In Stock: 8,309

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	250A (Tc)
Rds On (Max) @ Id, Vgs	10mOhm @ 200A, 20V
Vgs(th) (Max) @ Id	2.2V @ 10mA (Typ)

Gate Charge (Qg) (Max) @ Vgs	490nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	9500pF @ 1000V
Power - Max	1100W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	D-3 Module
Supplier Device Package	D3
