APTM50HM75STG

In Stock: 1

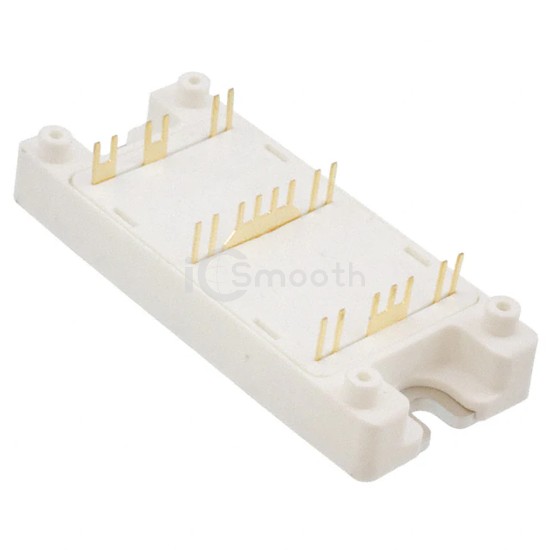

APTM50HM75STG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTM50HM75STG Microchip Technology
APTM50HM75STG

Microchip Technology

MOSFET 4N-CH 500V 46A SP4

APTM50HM75STG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 4N-CH 500V 46A SP4. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP4, power - max 357W.

Datasheet Request a Quote

In Stock: 1

Specifications

14 parameters
Product StatusActive
FET Type4 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)500V
Current - Continuous Drain (Id) @ 25°C46A
Rds On (Max) @ Id, Vgs90mOhm @ 23A, 10V
Vgs(th) (Max) @ Id5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs123nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds5600pF @ 25V
Power - Max357W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP4
Supplier Device PackageSP4
