APTM50H14FT3G

In Stock: 3,699

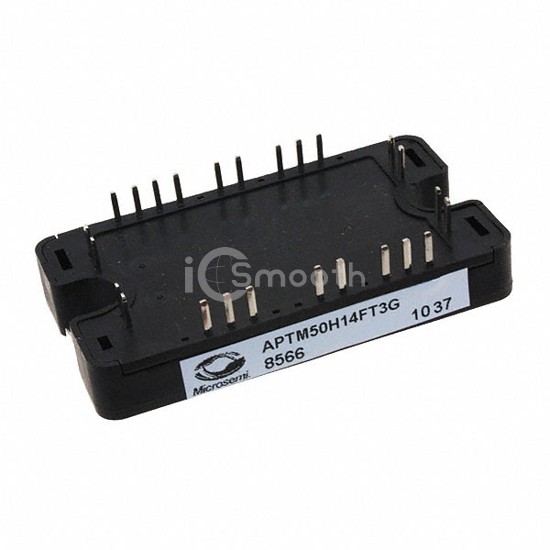

APTM50H14FT3G - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTM50H14FT3G Microchip Technology
APTM50H14FT3G

Microchip Technology

MOSFET 4N-CH 500V 26A SP3

APTM50H14FT3G is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 4N-CH 500V 26A SP3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP3, power - max 208W.

Datasheet Request a Quote

In Stock: 3,699

Specifications

14 parameters
Product StatusActive
FET Type4 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)500V
Current - Continuous Drain (Id) @ 25°C26A
Rds On (Max) @ Id, Vgs168mOhm @ 13A, 10V
Vgs(th) (Max) @ Id5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs72nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds3259pF @ 25V
Power - Max208W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP3
Supplier Device PackageSP3
