APTM50AM24SG

In Stock: 8,208

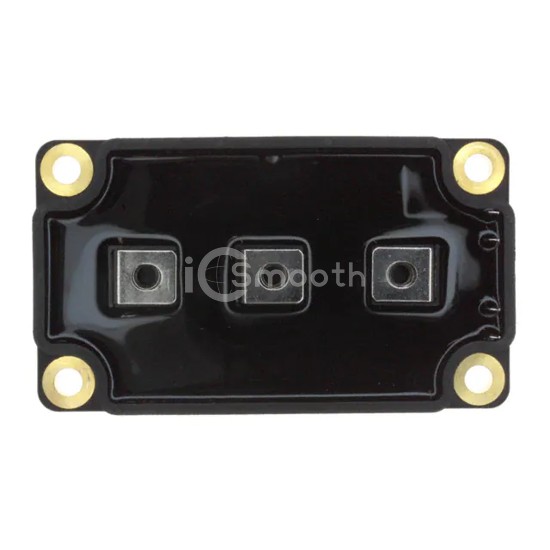

APTM50AM24SG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTM50AM24SG Microchip Technology
APTM50AM24SG

Microchip Technology

MOSFET 2N-CH 500V 150A SP6

APTM50AM24SG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 2N-CH 500V 150A SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, power - max 1250W.

Datasheet Request a Quote

In Stock: 8,208

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)500V
Current - Continuous Drain (Id) @ 25°C150A
Rds On (Max) @ Id, Vgs28mOhm @ 75A, 10V
Vgs(th) (Max) @ Id5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs434nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds19600pF @ 25V
Power - Max1250W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
