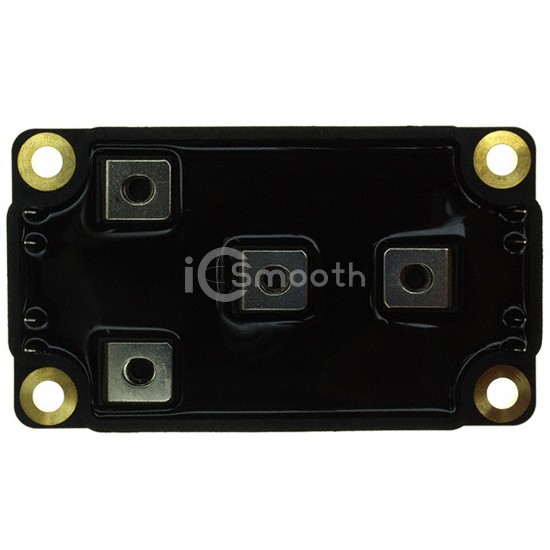

APTM120H29FG

In Stock: 1,107
APTM120H29FG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTM120H29FG Microchip Technology
APTM120H29FG

Microchip Technology

MOSFET 4N-CH 1200V 34A SP6

APTM120H29FG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 4N-CH 1200V 34A SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, power - max 780W.

Datasheet Request a Quote

In Stock: 1,107

Specifications

14 parameters
Product StatusActive
FET Type4 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C34A
Rds On (Max) @ Id, Vgs348mOhm @ 17A, 10V
Vgs(th) (Max) @ Id5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs374nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds10300pF @ 25V
Power - Max780W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
