APTM120H140FT1G

In Stock: 6,378

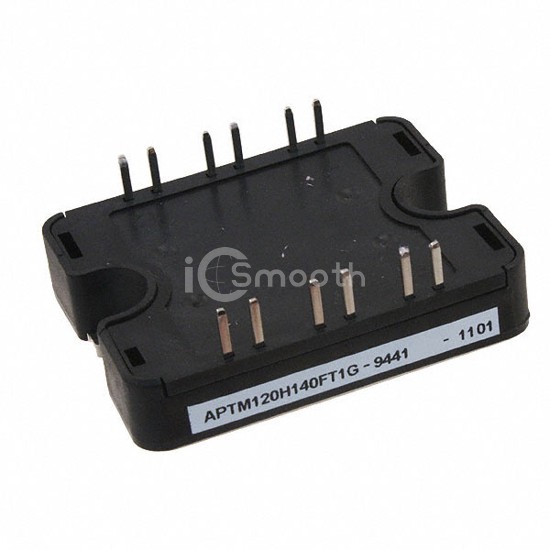

APTM120H140FT1G - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTM120H140FT1G Microchip Technology
APTM120H140FT1G

Microchip Technology

MOSFET 4N-CH 1200V 8A SP1

APTM120H140FT1G is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 4N-CH 1200V 8A SP1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP1, power - max 208W.

Datasheet Request a Quote

In Stock: 6,378

Specifications

14 parameters
Product StatusActive
FET Type4 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C8A
Rds On (Max) @ Id, Vgs1.68Ohm @ 7A, 10V
Vgs(th) (Max) @ Id5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs145nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds3812pF @ 25V
Power - Max208W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP1
Supplier Device PackageSP1
