APTM120DU15G

In Stock: 6,243

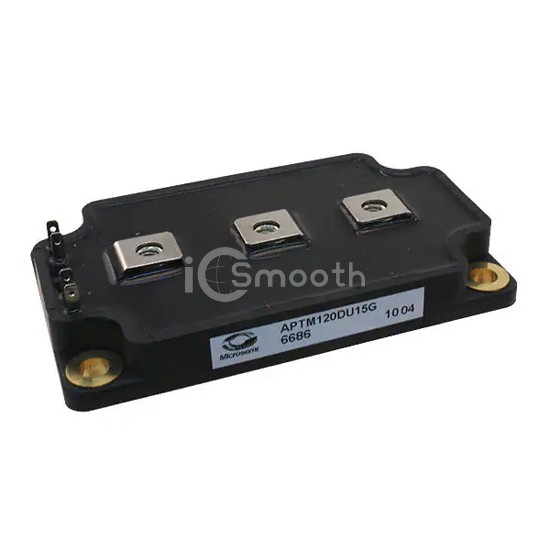

APTM120DU15G - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTM120DU15G Microchip Technology
APTM120DU15G

Microchip Technology

MOSFET 2N-CH 1200V 60A SP6

APTM120DU15G is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 2N-CH 1200V 60A SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, power - max 1250W.

Datasheet Request a Quote

In Stock: 6,243

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C60A
Rds On (Max) @ Id, Vgs175mOhm @ 30A, 10V
Vgs(th) (Max) @ Id5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs748nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds20600pF @ 25V
Power - Max1250W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
