APTM10AM02FG

In Stock: 1,472

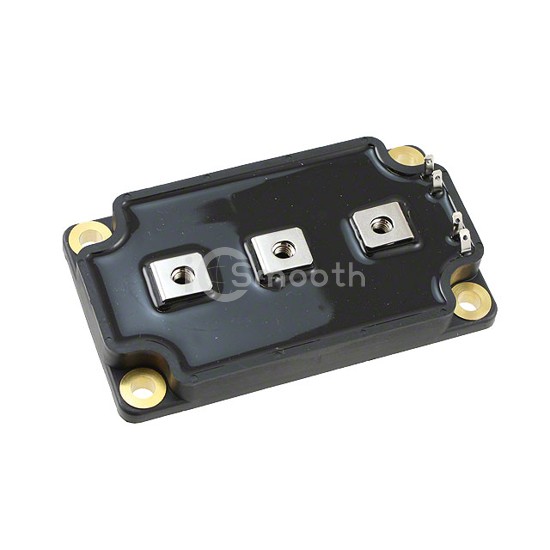

APTM10AM02FG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTM10AM02FG Microchip Technology
APTM10AM02FG

Microchip Technology

MOSFET 2N-CH 100V 495A SP6

APTM10AM02FG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 2N-CH 100V 495A SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, power - max 1250W.

Datasheet Request a Quote

In Stock: 1,472

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25°C495A
Rds On (Max) @ Id, Vgs2.5mOhm @ 200A, 10V
Vgs(th) (Max) @ Id4V @ 10mA
Gate Charge (Qg) (Max) @ Vgs1360nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds40000pF @ 25V
Power - Max1250W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
