APTM100H45STG

In Stock: 8,580

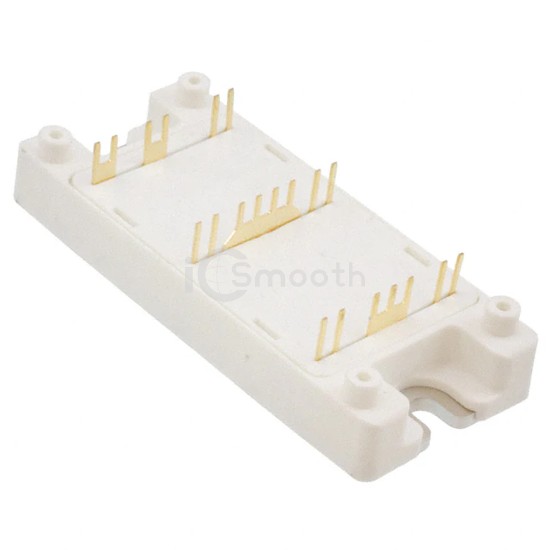

APTM100H45STG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTM100H45STG Microchip Technology
APTM100H45STG

Microchip Technology

MOSFET 4N-CH 1000V 18A SP4

APTM100H45STG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 4N-CH 1000V 18A SP4. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP4, power - max 357W.

Datasheet Request a Quote

In Stock: 8,580

Specifications

14 parameters
Product StatusActive
FET Type4 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)1000V (1kV)
Current - Continuous Drain (Id) @ 25°C18A
Rds On (Max) @ Id, Vgs540mOhm @ 9A, 10V
Vgs(th) (Max) @ Id5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs154nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds4350pF @ 25V
Power - Max357W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP4
Supplier Device PackageSP4
