APTM100H18FG

In Stock: 6,877

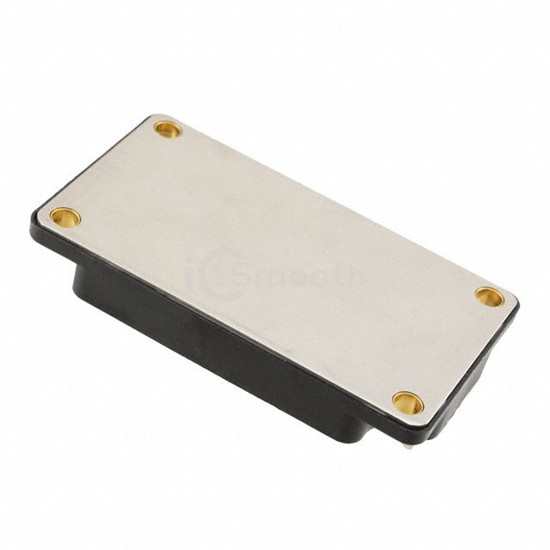

APTM100H18FG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTM100H18FG Microchip Technology
APTM100H18FG

Microchip Technology

MOSFET 4N-CH 1000V 43A SP6

APTM100H18FG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 4N-CH 1000V 43A SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, power - max 780W.

Datasheet Request a Quote

In Stock: 6,877

Specifications

14 parameters
Product StatusActive
FET Type4 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)1000V (1kV)
Current - Continuous Drain (Id) @ 25°C43A
Rds On (Max) @ Id, Vgs210mOhm @ 21.5A, 10V
Vgs(th) (Max) @ Id5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs372nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds10400pF @ 25V
Power - Max780W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
