APTC60HM70SCTG

In Stock: 8,262

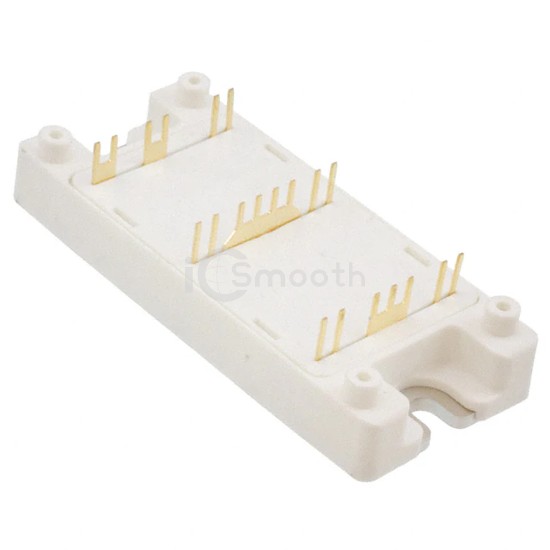

APTC60HM70SCTG - Microchip Technology - Transistors - FETs, MOSFETs - Arrays
REF: APTC60HM70SCTG Microchip Technology
APTC60HM70SCTG

Microchip Technology

MOSFET 4N-CH 600V 39A SP4

APTC60HM70SCTG is a Transistors - FETs, MOSFETs - Arrays manufactured by Microchip Technology. MOSFET 4N-CH 600V 39A SP4. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP4, power - max 250W.

Datasheet Request a Quote

In Stock: 8,262

Specifications

14 parameters
Product StatusActive
FET Type4 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)600V
Current - Continuous Drain (Id) @ 25°C39A
Rds On (Max) @ Id, Vgs70mOhm @ 39A, 10V
Vgs(th) (Max) @ Id3.9V @ 2.7mA
Gate Charge (Qg) (Max) @ Vgs259nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds7000pF @ 25V
Power - Max250W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP4
Supplier Device PackageSP4
