CCS050M12CM2

In Stock: 5,746

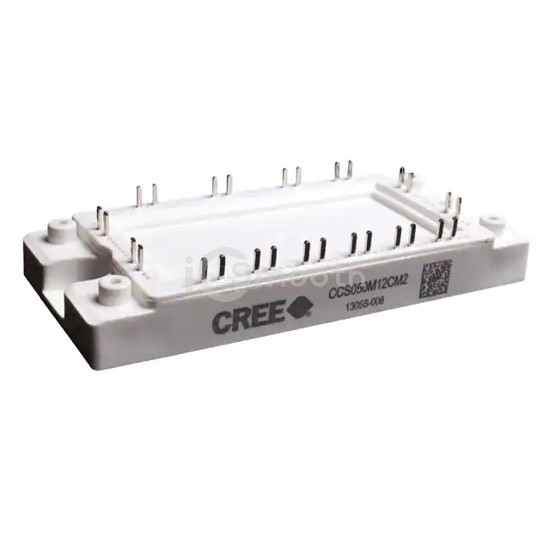

CCS050M12CM2 - Wolfspeed, Inc. - Transistors - FETs, MOSFETs - Arrays
REF: CCS050M12CM2 Wolfspeed, Inc.
CCS050M12CM2

Wolfspeed, Inc.

MOSFET 6N-CH 1200V 87A MODULE

CCS050M12CM2 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. MOSFET 6N-CH 1200V 87A MODULE. Key specifications: mounting type Chassis Mount, operating temperature 150°C (TJ), package / case Module, power - max 337W.

Datasheet Request a Quote

In Stock: 5,746

Specifications

14 parameters
Product StatusNot For New Designs
FET Type6 N-Channel (3-Phase Bridge)
FET FeatureSilicon Carbide (SiC)
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C87A (Tc)
Rds On (Max) @ Id, Vgs34mOhm @ 50A, 20V
Vgs(th) (Max) @ Id2.3V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs180nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds2.810nF @ 800V
Power - Max337W
Operating Temperature150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
