Name: CCS020M12CM2
Brand: Wolfspeed, Inc.
SKU: CCS020M12CM2
Price: 337.39 USD
Availability: InStock

REF: CCS020M12CM2 Wolfspeed, Inc.

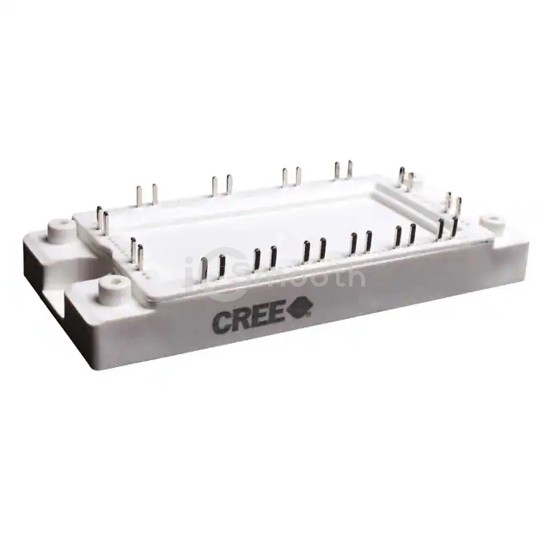

CCS020M12CM2

MOSFET 6N-CH 1200V 29.5A MODULE

CCS020M12CM2 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. MOSFET 6N-CH 1200V 29.5A MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, power - max 167W.

Datasheet Request a Quote

In Stock: 7,714

Specifications

14 parameters

Product Status	Not For New Designs
FET Type	6 N-Channel (3-Phase Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	29.5A (Tc)
Rds On (Max) @ Id, Vgs	98mOhm @ 20A, 20V
Vgs(th) (Max) @ Id	2.2V @ 1mA (Typ)

Gate Charge (Qg) (Max) @ Vgs	61.5nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	900pF @ 800V
Power - Max	167W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
