Name: CAS530M12BM3
Brand: Wolfspeed, Inc.
SKU: CAS530M12BM3
Price: 938.32 USD
Availability: InStock

REF: CAS530M12BM3 Wolfspeed, Inc.

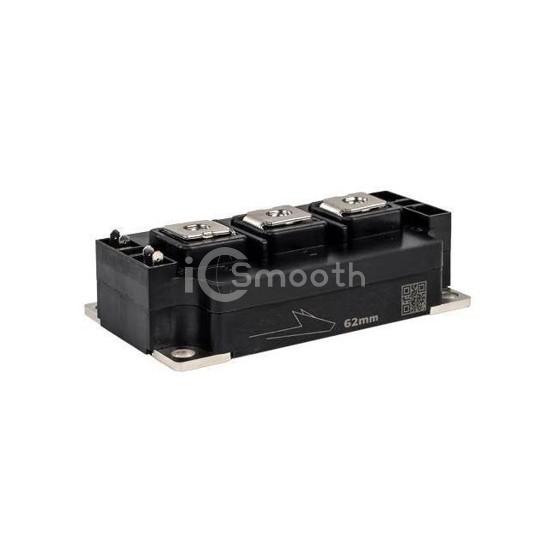

CAS530M12BM3

530A 1200V SIC HALF-BRIDGE MODUL

CAS530M12BM3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. 530A 1200V SIC HALF-BRIDGE MODUL. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 7,748

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual) Common Source
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	630A (Tc)
Rds On (Max) @ Id, Vgs	3.47mOhm @ 530A, 15V
Vgs(th) (Max) @ Id	3.6V @ 127mA

Gate Charge (Qg) (Max) @ Vgs	1362nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	38900pF @ 800V
Power - Max	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	-
