Name: CAS480M12HM3
Brand: Wolfspeed, Inc.
SKU: CAS480M12HM3
Price: 2157.73 USD
Availability: InStock

REF: CAS480M12HM3 Wolfspeed, Inc.

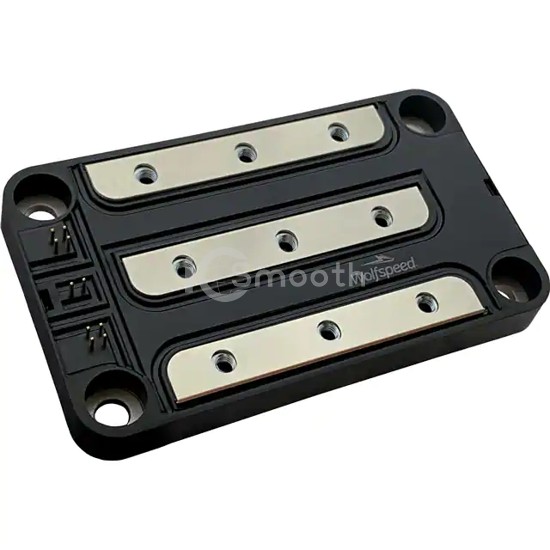

CAS480M12HM3

Wolfspeed, Inc.

1.2 KV, 480A HIGH PERFORMANCE SI

CAS480M12HM3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. 1.2 KV, 480A HIGH PERFORMANCE SI. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 9,769

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	640A (Tc)
Rds On (Max) @ Id, Vgs	2.97mOhm @ 480A, 15V
Vgs(th) (Max) @ Id	3.6V @ 160mA

Gate Charge (Qg) (Max) @ Vgs	1590nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	43.1nF @ 800V
Power - Max	-
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
