Name: CAS325M12HM2
Brand: Wolfspeed, Inc.
SKU: CAS325M12HM2
Availability: InStock

REF: CAS325M12HM2 Wolfspeed, Inc.

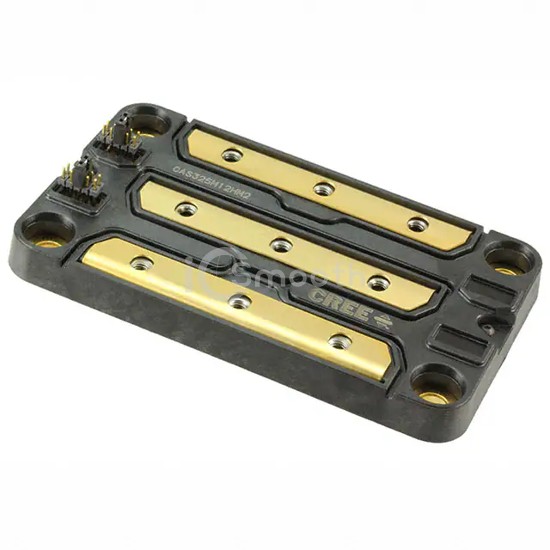

CAS325M12HM2

MOSFET 2N-CH 1200V 444A MODULE

CAS325M12HM2 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. MOSFET 2N-CH 1200V 444A MODULE. Key specifications: operating temperature 175°C (TJ), package / case Module, power - max 3000W.

Datasheet Request a Quote

In Stock: 5,332

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	444A (Tc)
Rds On (Max) @ Id, Vgs	4.3mOhm @ 400A, 20V
Vgs(th) (Max) @ Id	4V @ 105mA

Gate Charge (Qg) (Max) @ Vgs	1127nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	19.5nF @ 1000V
Power - Max	3000W
Operating Temperature	175°C (TJ)
Mounting Type	-
Package / Case	Module
Supplier Device Package	Module
