Name: CAS300M17BM2
Brand: Wolfspeed, Inc.
SKU: CAS300M17BM2
Price: 882.36 USD
Availability: InStock

REF: CAS300M17BM2 Wolfspeed, Inc.

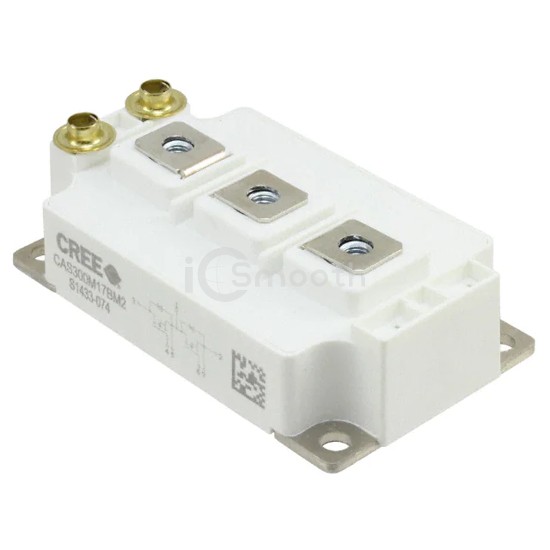

CAS300M17BM2

MOSFET 2N-CH 1700V 325A MODULE

CAS300M17BM2 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. MOSFET 2N-CH 1700V 325A MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, power - max 1760W.

Datasheet Request a Quote

In Stock: 2,646

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1700V (1.7kV)
Current - Continuous Drain (Id) @ 25°C	325A (Tc)
Rds On (Max) @ Id, Vgs	10mOhm @ 225A, 20V
Vgs(th) (Max) @ Id	2.3V @ 15mA (Typ)

Gate Charge (Qg) (Max) @ Vgs	1076nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	20000pF @ 1000V
Power - Max	1760W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
