Name: CAS300M12BM2
Brand: Wolfspeed, Inc.
SKU: CAS300M12BM2
Price: 882.68 USD
Availability: InStock

REF: CAS300M12BM2 Wolfspeed, Inc.

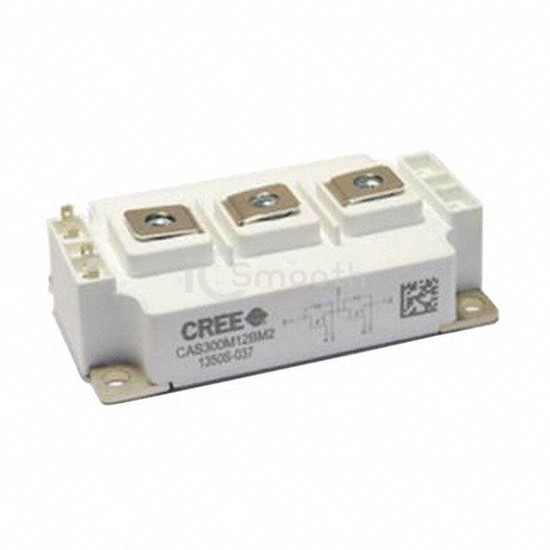

CAS300M12BM2

MOSFET 2N-CH 1200V 404A MODULE

CAS300M12BM2 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. MOSFET 2N-CH 1200V 404A MODULE. Key specifications: mounting type Chassis Mount, operating temperature 150°C (TJ), package / case Module, Screw Terminals, power - max 1660W.

Datasheet Request a Quote

In Stock: 30

Specifications

14 parameters

Product Status	Not For New Designs
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	423A (Tc)
Rds On (Max) @ Id, Vgs	5.7mOhm @ 300A, 20V
Vgs(th) (Max) @ Id	2.3V @ 15mA (Typ)

Gate Charge (Qg) (Max) @ Vgs	1025nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	19.5nF @ 800V
Power - Max	1660W
Operating Temperature	150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module, Screw Terminals
Supplier Device Package	Module
