Name: CAS120M12BM2
Brand: Wolfspeed, Inc.
SKU: CAS120M12BM2
Price: 539.91 USD
Availability: InStock

REF: CAS120M12BM2 Wolfspeed, Inc.

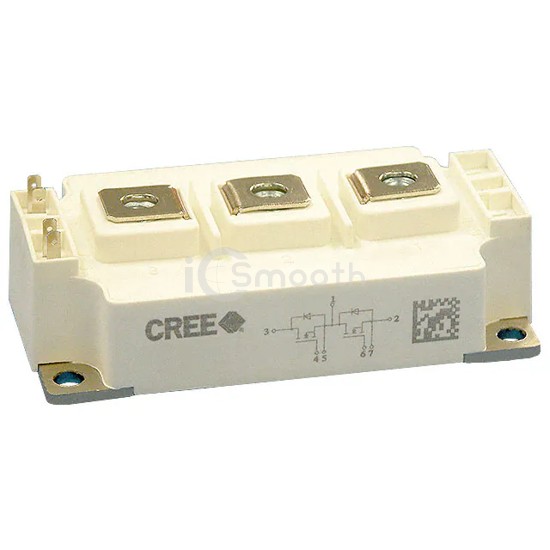

CAS120M12BM2

MOSFET 2N-CH 1200V 193A MODULE

CAS120M12BM2 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. MOSFET 2N-CH 1200V 193A MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, power - max 925W.

Datasheet Request a Quote

In Stock: 516

Specifications

14 parameters

Product Status	Not For New Designs
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	193A (Tc)
Rds On (Max) @ Id, Vgs	16mOhm @ 120A, 20V
Vgs(th) (Max) @ Id	2.6V @ 6mA (Typ)

Gate Charge (Qg) (Max) @ Vgs	378nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	6470pF @ 800V
Power - Max	925W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
