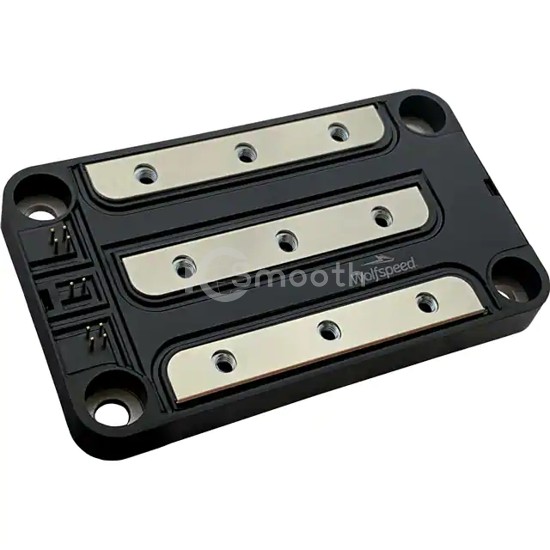

Name: CAB760M12HM3
Brand: Wolfspeed, Inc.
SKU: CAB760M12HM3
Price: 2792.73 USD
Availability: InStock

REF: CAB760M12HM3 Wolfspeed, Inc.

CAB760M12HM3

Wolfspeed, Inc.

1.2 KV, 760A HIGH PERFORMANCE SI

CAB760M12HM3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. 1.2 KV, 760A HIGH PERFORMANCE SI. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 4,964

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	1015A (Tc)
Rds On (Max) @ Id, Vgs	1.73mOhm @ 760A, 15V
Vgs(th) (Max) @ Id	3.6V @ 280mA

Gate Charge (Qg) (Max) @ Vgs	2724nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	79.4nF @ 800V
Power - Max	-
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
