Name: CAB530M12BM3
Brand: Wolfspeed, Inc.
SKU: CAB530M12BM3
Price: 936.54 USD
Availability: InStock

REF: CAB530M12BM3 Wolfspeed, Inc.

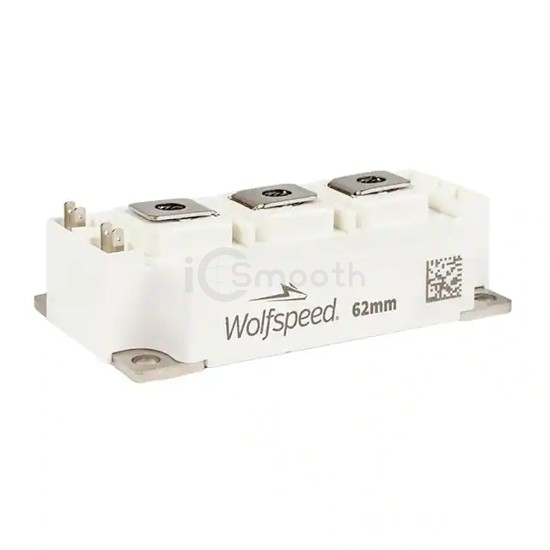

CAB530M12BM3

1200V, 530A H-BRIDGE SIC MODULE

CAB530M12BM3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. 1200V, 530A H-BRIDGE SIC MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 5,209

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	530A
Rds On (Max) @ Id, Vgs	3.55mOhm @ 530A, 15V
Vgs(th) (Max) @ Id	3.6V @ 140mA

Gate Charge (Qg) (Max) @ Vgs	1362nC @ 4V
Input Capacitance (Ciss) (Max) @ Vds	39.6nF @ 800V
Power - Max	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
