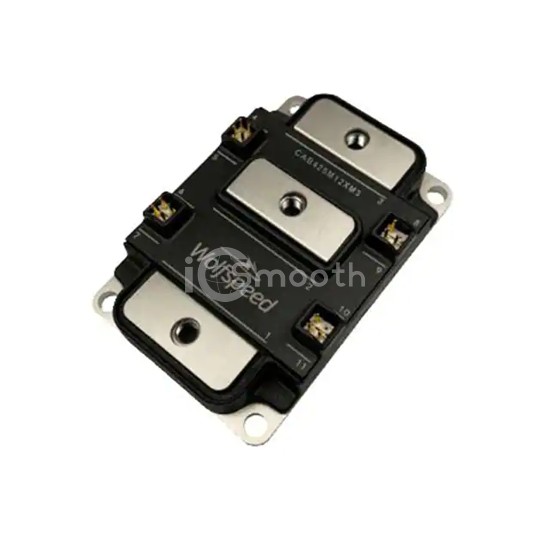

Name: CAB425M12XM3
Brand: Wolfspeed, Inc.
SKU: CAB425M12XM3
Price: 764.97 USD
Availability: InStock

REF: CAB425M12XM3 Wolfspeed, Inc.

CAB425M12XM3

1.2KV, 425A SWITCHING LOSS OPTIM

CAB425M12XM3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. 1.2KV, 425A SWITCHING LOSS OPTIM. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, power - max 50mW.

Datasheet Request a Quote

In Stock: 4,199

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	450A
Rds On (Max) @ Id, Vgs	4.2mOhm @ 425A, 15V
Vgs(th) (Max) @ Id	3.6V @ 115mA

Gate Charge (Qg) (Max) @ Vgs	1135nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	30.7nF @ 800V
Power - Max	50mW
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	-
