Name: CAB400M12XM3
Brand: Wolfspeed, Inc.
SKU: CAB400M12XM3
Price: 690.15 USD
Availability: InStock

REF: CAB400M12XM3 Wolfspeed, Inc.

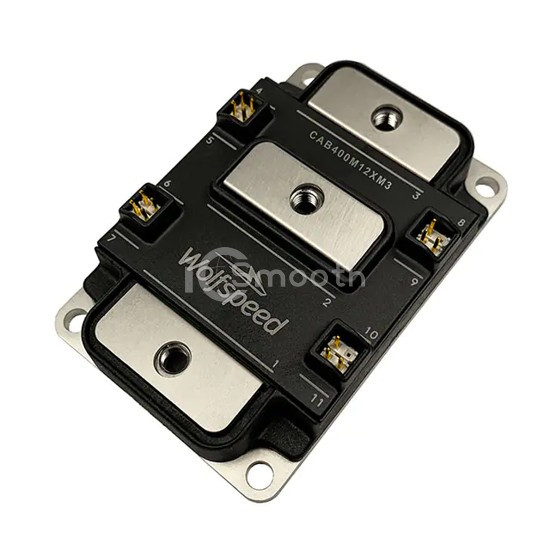

CAB400M12XM3

MOSFET 2 N-CH 1200V MODULE

CAB400M12XM3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. MOSFET 2 N-CH 1200V MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 71

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	395A (Tc)
Rds On (Max) @ Id, Vgs	5.3mOhm @ 400A, 15V
Vgs(th) (Max) @ Id	3.6V @ 92mA

Gate Charge (Qg) (Max) @ Vgs	908nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	2450pF @ 800V
Power - Max	-
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	-
