Name: CAB016M12FM3
Brand: Wolfspeed, Inc.
SKU: CAB016M12FM3
Price: 142.08 USD
Availability: InStock

REF: CAB016M12FM3 Wolfspeed, Inc.

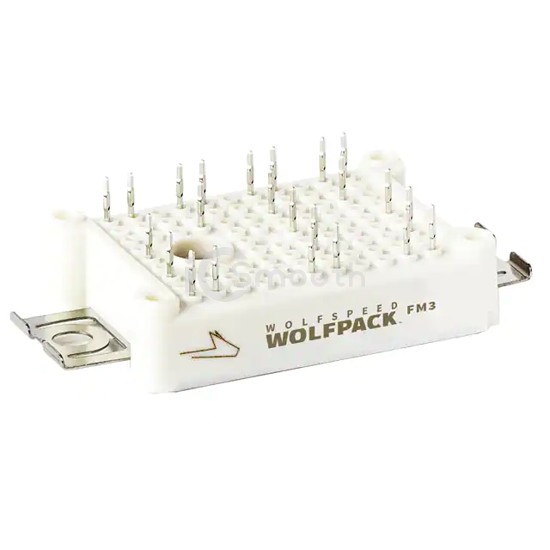

CAB016M12FM3

MOSFET 2 N-CH 1.2KV 78A MODULE

CAB016M12FM3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Wolfspeed, Inc.. MOSFET 2 N-CH 1.2KV 78A MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, power - max 10mW.

Datasheet Request a Quote

In Stock: 40

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	78A
Rds On (Max) @ Id, Vgs	21.3mOhm @ 80A, 15V
Vgs(th) (Max) @ Id	3.6V @ 23mA

Gate Charge (Qg) (Max) @ Vgs	236nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	6.6nF @ 800V
Power - Max	10mW
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	-
