Name: SSM6N61NU,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM6N61NU,LF
Price: 0.17 USD
Availability: InStock

REF: SSM6N61NU,LF Toshiba Semiconductor and Storage

SSM6N61NU,LF

Toshiba Semiconductor and Storage

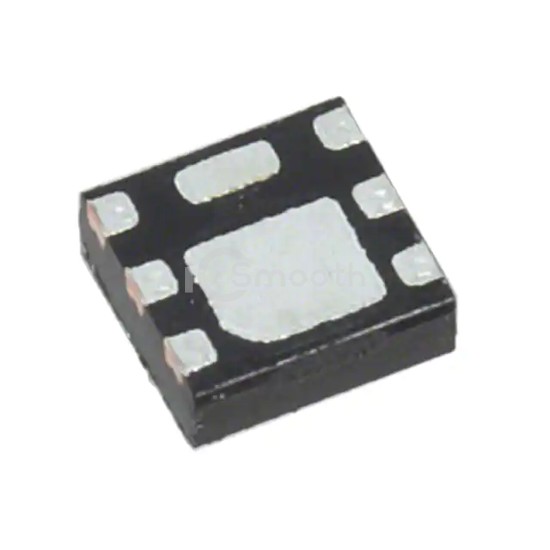

MOSFET 2N-CH 20V 4A UDFN

SSM6N61NU,LF is a Transistors - FETs, MOSFETs - Arrays manufactured by Toshiba Semiconductor and Storage. MOSFET 2N-CH 20V 4A UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad, power - max 2W.

Datasheet Request a Quote

In Stock: 8,582

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate, 1.5V Drive
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4A
Rds On (Max) @ Id, Vgs	33mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	3.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	410pF @ 10V
Power - Max	2W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-UDFNB (2x2)
