Name: SSM6N36FE,LM
Brand: Toshiba Semiconductor and Storage
SKU: SSM6N36FE,LM
Price: 0.09 USD
Availability: InStock

REF: SSM6N36FE,LM Toshiba Semiconductor and Storage

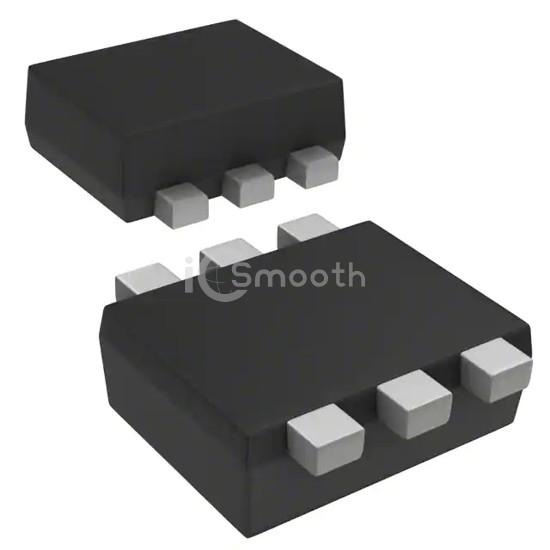

SSM6N36FE,LM

Toshiba Semiconductor and Storage

MOSFET 2N-CH 20V 0.5A ES6

SSM6N36FE,LM is a Transistors - FETs, MOSFETs - Arrays manufactured by Toshiba Semiconductor and Storage. MOSFET 2N-CH 20V 0.5A ES6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-563, SOT-666, power - max 150mW.

Datasheet Request a Quote

In Stock: 1,573

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	500mA
Rds On (Max) @ Id, Vgs	630mOhm @ 200mA, 5V
Vgs(th) (Max) @ Id	1V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	1.23nC @ 4V
Input Capacitance (Ciss) (Max) @ Vds	46pF @ 10V
Power - Max	150mW
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	ES6 (1.6x1.6)
