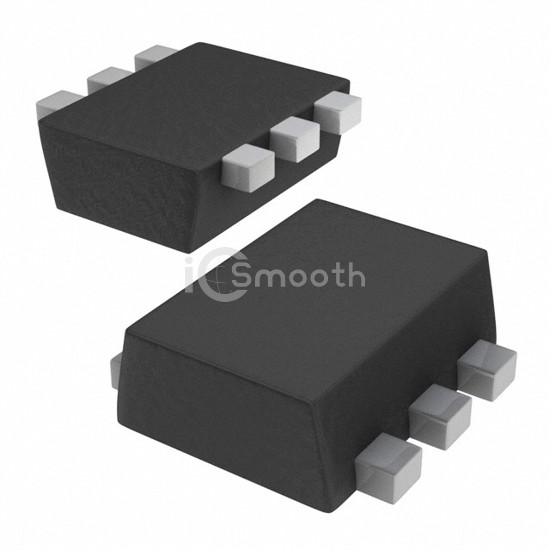

Name: SSM6N357R,LF
Brand: Toshiba Semiconductor and Storage
SKU: SSM6N357R,LF
Price: 0.43 USD
Availability: InStock

REF: SSM6N357R,LF Toshiba Semiconductor and Storage

SSM6N357R,LF

Toshiba Semiconductor and Storage

SMALL LOW R-ON MOSFETS DUAL NCH

SSM6N357R,LF is a Transistors - FETs, MOSFETs - Arrays manufactured by Toshiba Semiconductor and Storage. SMALL LOW R-ON MOSFETS DUAL NCH. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 6-SMD, Flat Leads, power - max 1.5W (Ta).

Datasheet Request a Quote

In Stock: 2,167

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	650mA (Ta)
Rds On (Max) @ Id, Vgs	1.8Ohm @ 150mA, 5V
Vgs(th) (Max) @ Id	2V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	1.5nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds	60pF @ 12V
Power - Max	1.5W (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Leads
Supplier Device Package	6-TSOP-F
