CSD88599Q5DCT

In Stock: 9,265

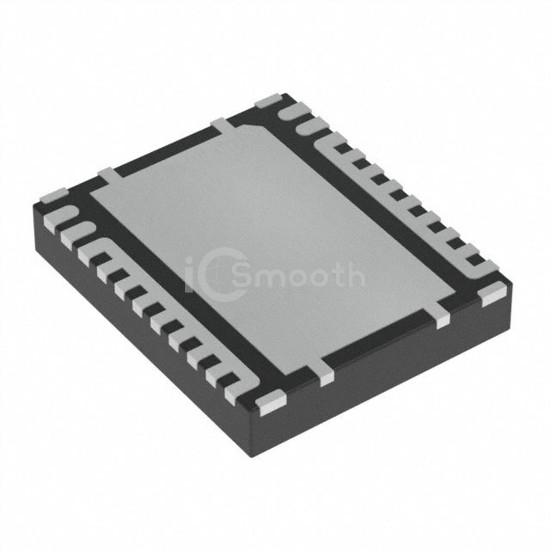

CSD88599Q5DCT - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD88599Q5DCT Texas Instruments
CSD88599Q5DCT

Texas Instruments

MOSFET 2N-CH 60V 22-VSON-CLIP

CSD88599Q5DCT is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 60V 22-VSON-CLIP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 22-PowerTFDFN, power - max 12W.

Datasheet Request a Quote

In Stock: 9,265

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs2.1mOhm @ 30A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs27nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds4840pF @ 30V
Power - Max12W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case22-PowerTFDFN
Supplier Device Package22-VSON-CLIP (5x6)
