CSD87588N

In Stock: 6,740

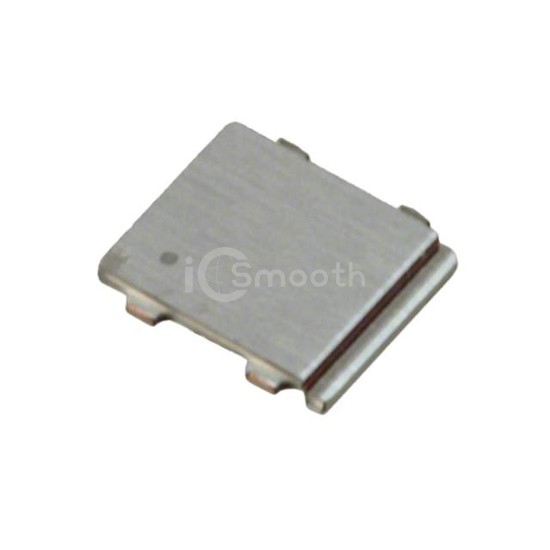

CSD87588N - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD87588N Texas Instruments
CSD87588N

Texas Instruments

MOSFET 2N-CH 30V 25A 5PTAB

CSD87588N is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 30V 25A 5PTAB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 5-XFLGA, power - max 6W.

Datasheet Request a Quote

In Stock: 6,740

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C25A
Rds On (Max) @ Id, Vgs9.6mOhm @ 15A, 10V
Vgs(th) (Max) @ Id1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds736pF @ 15V
Power - Max6W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case5-XFLGA
Supplier Device Package5-PTAB (3x2.5)
