CSD87503Q3E

In Stock: 9,080

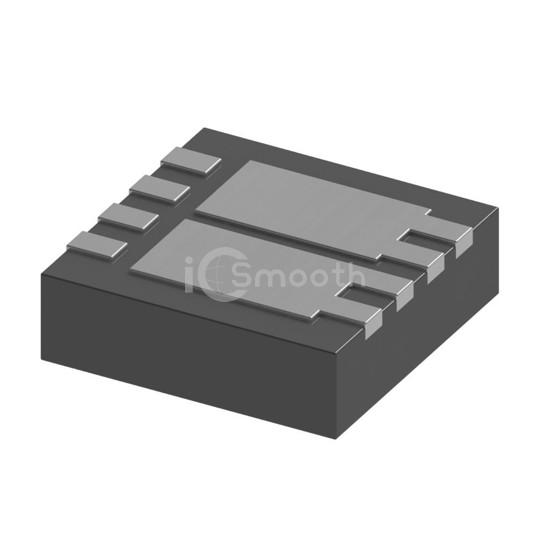

CSD87503Q3E - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD87503Q3E Texas Instruments
CSD87503Q3E

Texas Instruments

MOSFET 2 N-CHANNEL 30V 10A 8SON

CSD87503Q3E is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2 N-CHANNEL 30V 10A 8SON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN, power - max 15.6W.

Datasheet Request a Quote

In Stock: 9,080

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Source
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C10A (Ta)
Rds On (Max) @ Id, Vgs13.5mOhm @ 6A, 10V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1020pF @ 15V
Power - Max15.6W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device Package8-VSON (3.3x3.3)
