Name: CSD87381P
Brand: Texas Instruments
SKU: CSD87381P
Price: 0.97 USD
Availability: InStock

REF: CSD87381P Texas Instruments

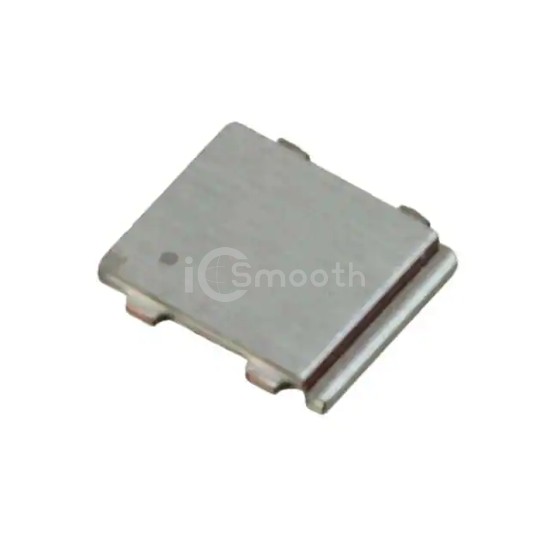

CSD87381P

MOSFET 2N-CH 30V 15A 5PTAB

CSD87381P is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 30V 15A 5PTAB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 5-LGA, power - max 4W.

Datasheet Request a Quote

In Stock: 3,534

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	15A
Rds On (Max) @ Id, Vgs	16.3mOhm @ 8A, 8V
Vgs(th) (Max) @ Id	1.9V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	564pF @ 15V
Power - Max	4W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	5-LGA
Supplier Device Package	5-PTAB (3x2.5)
