Name: CSD87350Q5D
Brand: Texas Instruments
SKU: CSD87350Q5D
Price: 2.83 USD
Availability: InStock

REF: CSD87350Q5D Texas Instruments

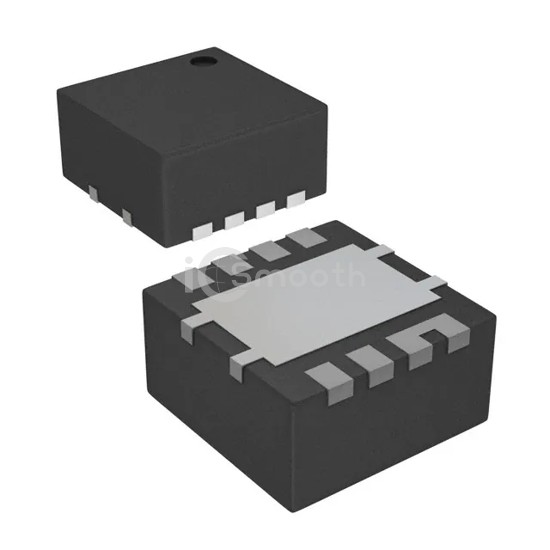

CSD87350Q5D

MOSFET 2N-CH 30V 40A 8LSON

CSD87350Q5D is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 30V 40A 8LSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerLDFN, power - max 12W.

Datasheet Request a Quote

In Stock: 3,364

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	40A
Rds On (Max) @ Id, Vgs	5.9mOhm @ 20A, 8V
Vgs(th) (Max) @ Id	2.1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	10.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1770pF @ 15V
Power - Max	12W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerLDFN
Supplier Device Package	8-LSON (5x6)
