CSD87333Q3D

In Stock: 2,035

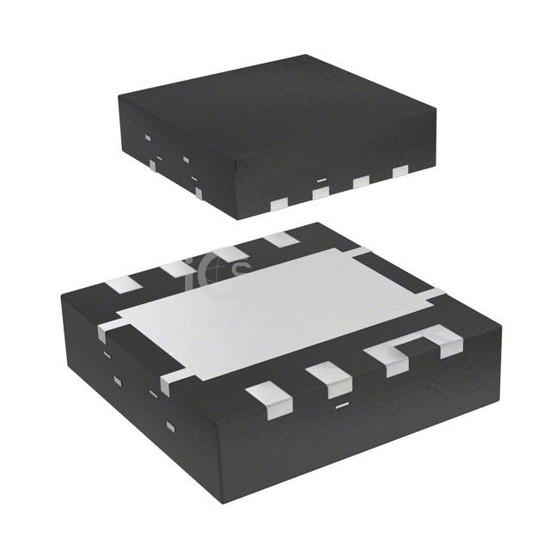

CSD87333Q3D - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD87333Q3D Texas Instruments
CSD87333Q3D

Texas Instruments

MOSFET 2N-CH 30V 15A 8SON

CSD87333Q3D is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 30V 15A 8SON. Key specifications: mounting type Surface Mount, operating temperature 125°C (TJ), package / case 8-PowerTDFN, power - max 6W.

Datasheet Request a Quote

In Stock: 2,035

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Asymmetrical
FET FeatureLogic Level Gate, 5V Drive
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C15A
Rds On (Max) @ Id, Vgs14.3mOhm @ 4A, 8V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds662pF @ 15V
Power - Max6W
Operating Temperature125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device Package8-VSON (3.3x3.3)
