CSD87330Q3D

In Stock: 52,799

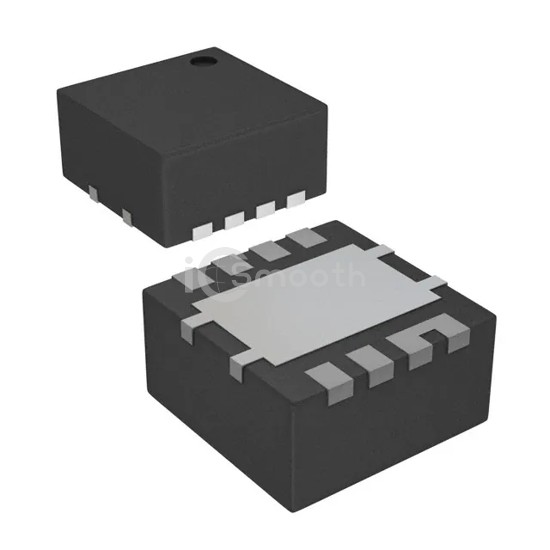

CSD87330Q3D - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD87330Q3D Texas Instruments
CSD87330Q3D

Texas Instruments

MOSFET 2N-CH 30V 20A 8SON

CSD87330Q3D is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 30V 20A 8SON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerLDFN, power - max 6W.

Datasheet Request a Quote

In Stock: 52,799

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C20A
Rds On (Max) @ Id, Vgs-
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds900pF @ 15V
Power - Max6W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerLDFN
Supplier Device Package8-LSON (3.3x3.3)
