CSD87313DMST

In Stock: 9,444

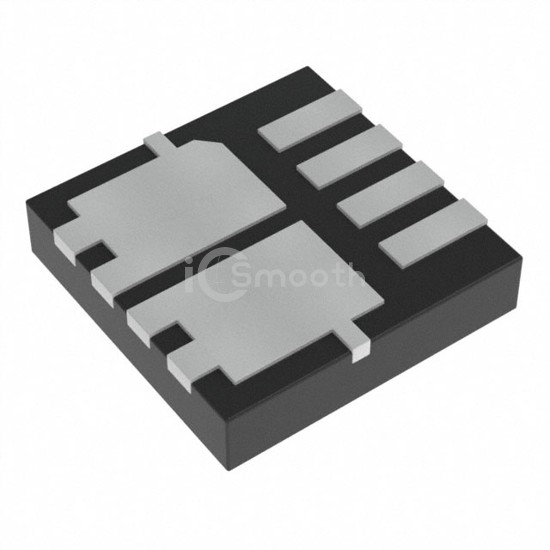

CSD87313DMST - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD87313DMST Texas Instruments
CSD87313DMST

Texas Instruments

MOSFET 2 N-CHANNEL 30V 8WSON

CSD87313DMST is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2 N-CHANNEL 30V 8WSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 2.7W.

Datasheet Request a Quote

In Stock: 9,444

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs-
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs28nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds4290pF @ 15V
Power - Max2.7W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device Package8-WSON (3.3x3.3)
