CSD87312Q3E

In Stock: 7,705

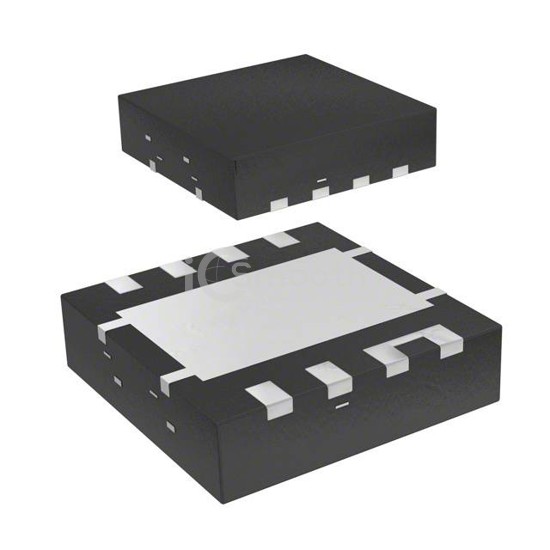

CSD87312Q3E - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD87312Q3E Texas Instruments
CSD87312Q3E

Texas Instruments

MOSFET 2N-CH 30V 27A 8VSON

CSD87312Q3E is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 30V 27A 8VSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 2.5W.

Datasheet Request a Quote

In Stock: 7,705

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Source
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C27A
Rds On (Max) @ Id, Vgs33mOhm @ 7A , 8V
Vgs(th) (Max) @ Id1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1250pF @ 15V
Power - Max2.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device Package8-VSON (3.3x3.3)
