CSD86350Q5DT

In Stock: 4,556

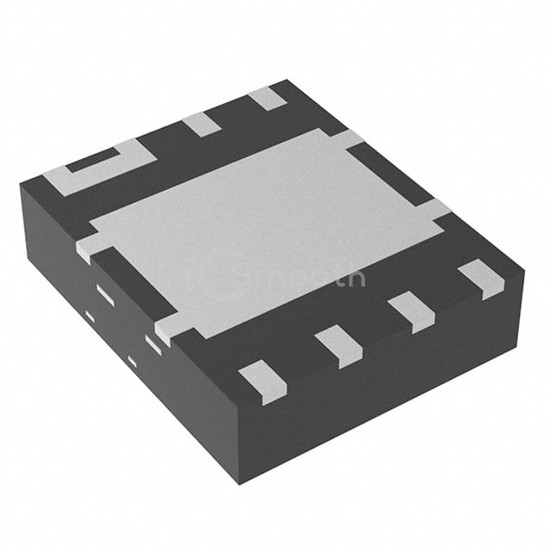

CSD86350Q5DT - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD86350Q5DT Texas Instruments
CSD86350Q5DT

Texas Instruments

25V POWERBLOCK N CH MOSFET

CSD86350Q5DT is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. 25V POWERBLOCK N CH MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerLDFN, power - max 13W (Ta).

Datasheet Request a Quote

In Stock: 4,556

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C40A (Ta)
Rds On (Max) @ Id, Vgs5mOhm @ 25A, 5V, 1.1mOhm @ 25A, 5V
Vgs(th) (Max) @ Id2.1V @ 250µA, 1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10.7nC @ 4.5V, 25nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1870pF @ 12.5V, 4000pF @ 12.5V
Power - Max13W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerLDFN
Supplier Device Package8-LSON (5x6)
